Pocket CO2 Monitor

GitHub URL: parth-20-07/Pocket-CO2-Monitor

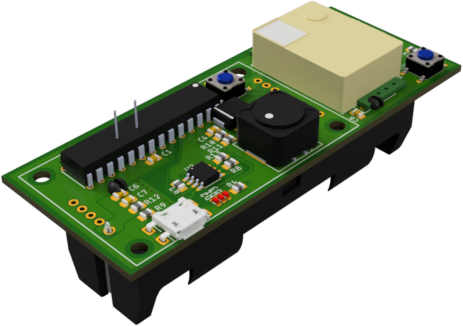

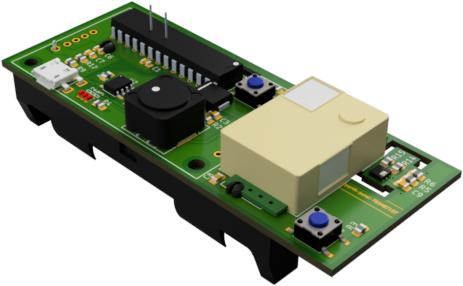

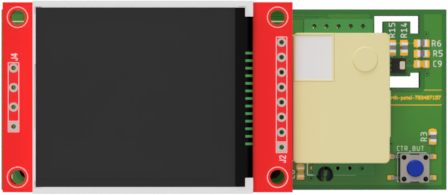

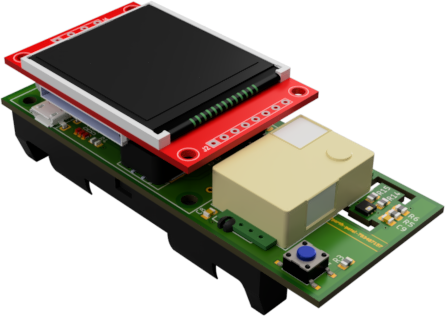

Product Renders

co2-1.png co2-2.png co2-3.png co2-4.png co2-5.png co2-6.png

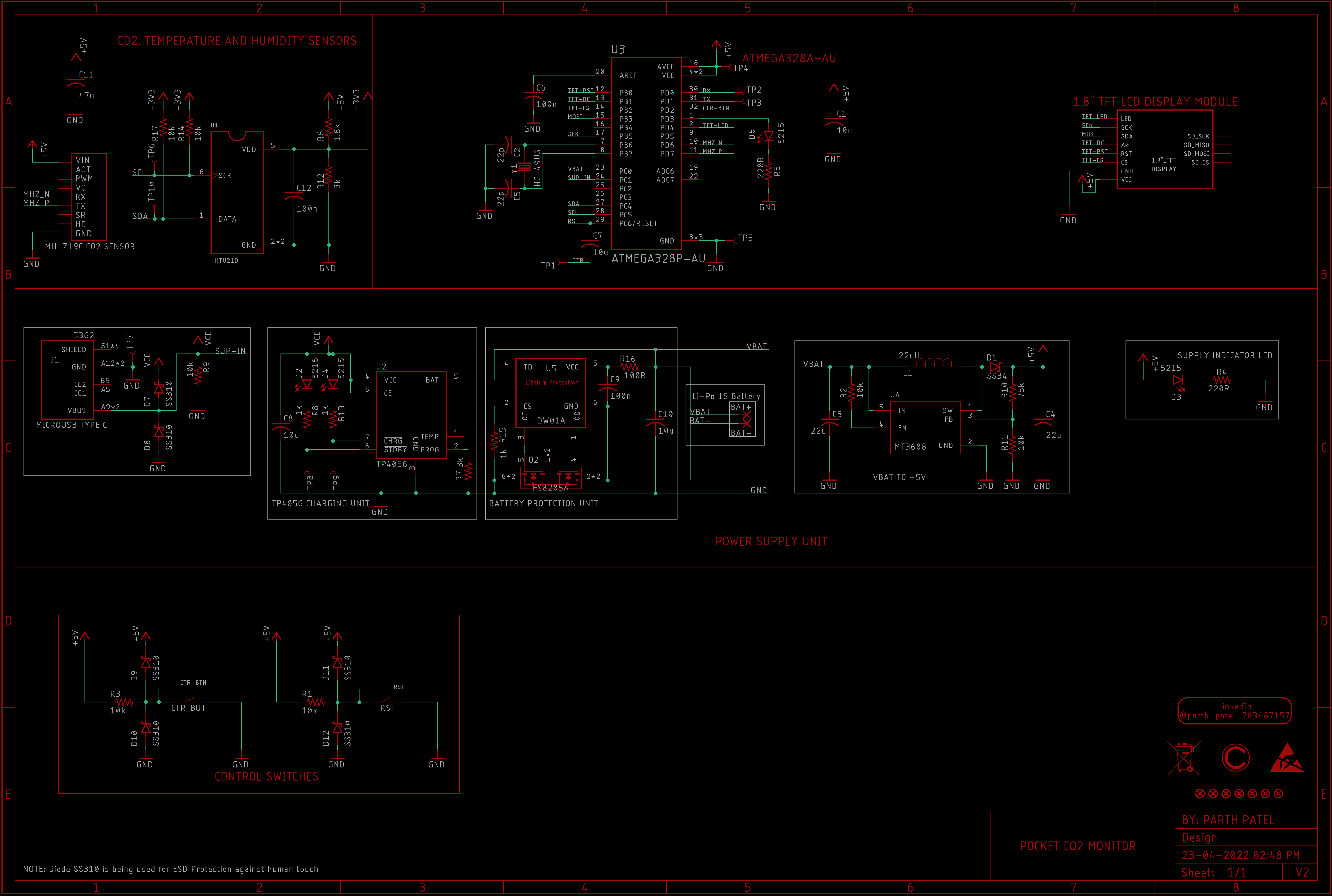

Product Schematics

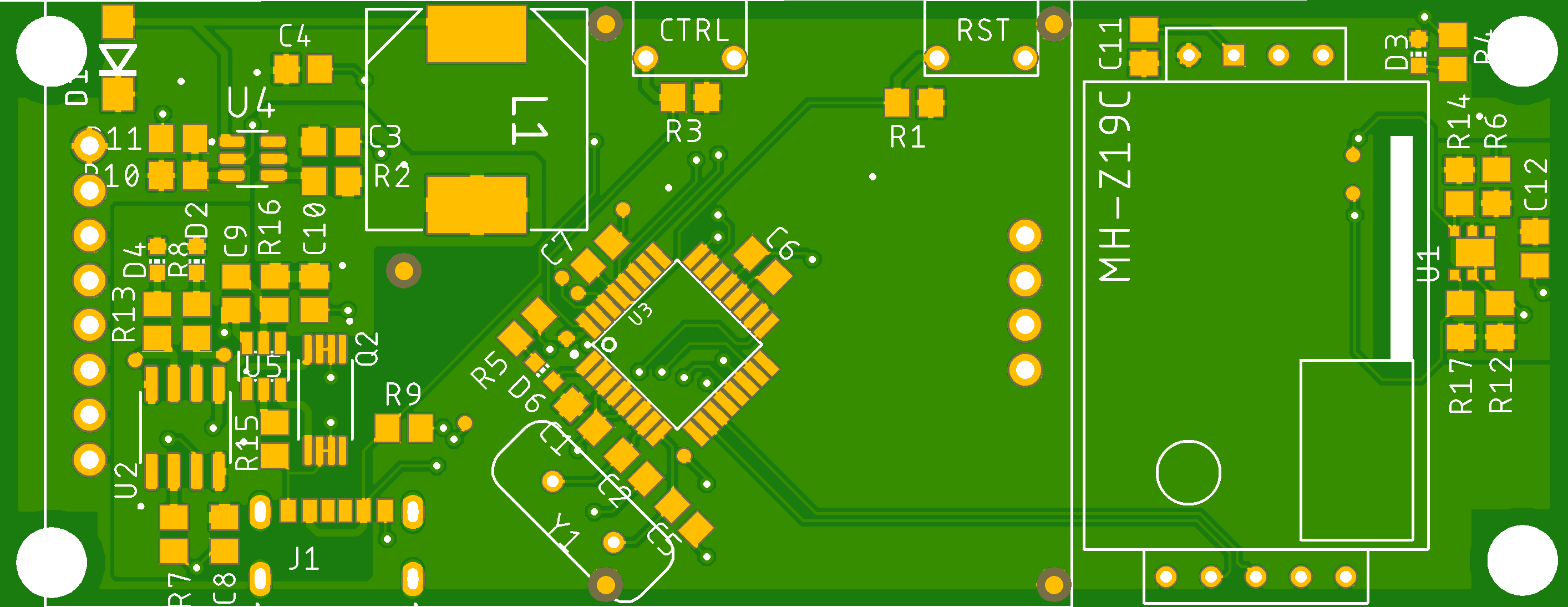

Product Board Design

co2-Top.png co2-Bottom.png

Brief Introduction on Project

Developed a compact and efficient CO2 monitor that displays carbon dioxide levels along with temperature and humidity. This device is designed to be portable with a significant emphasis on user-friendliness and practicality.

Key Features:

  • Displays CO2 levels, temperature, and humidity.
  • Approximately 1.5 hours of battery life.
  • MicroUSB Type B charging support.
